Product Features
- Connect up to 8 cameras

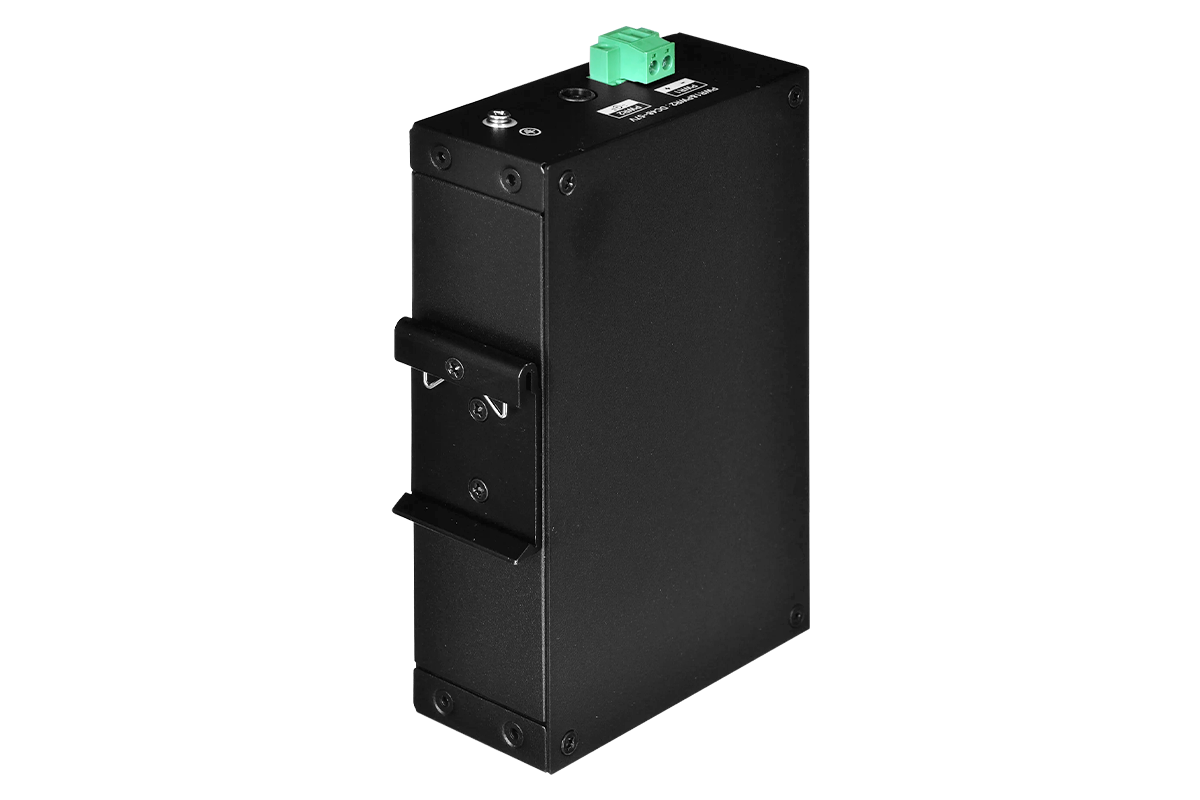

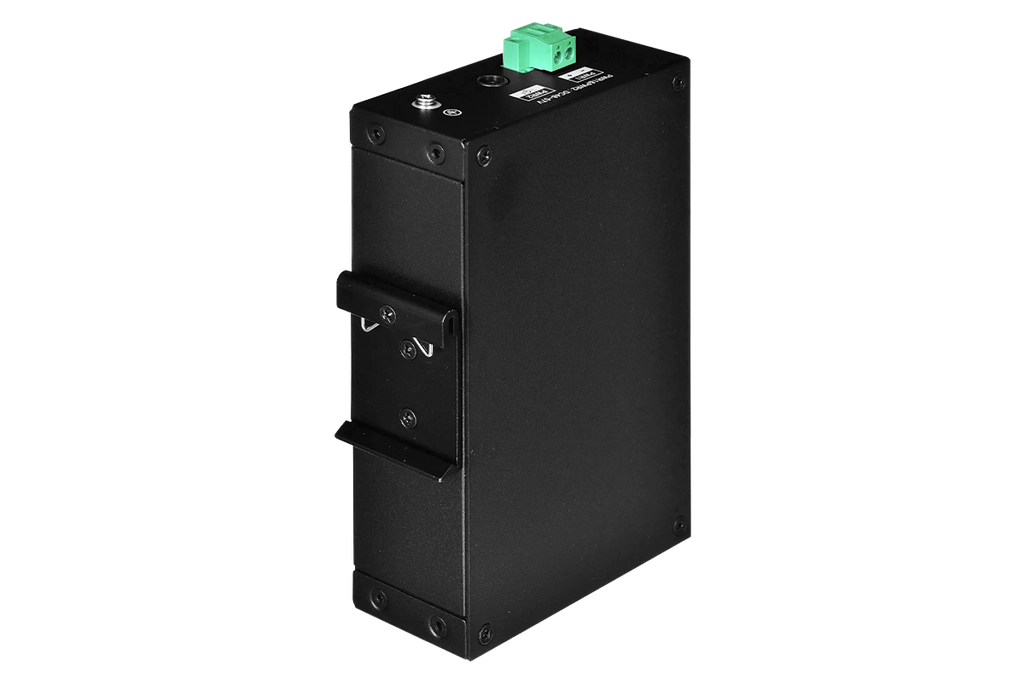

- Quick and Easy Mounting
- Flexible Surveillance System Design
- PoE transmission over 800 meters
- Supports PoE and PoC power supply technology
- Industrial wide temperature design
Add-Ons
Product Discontinued: Meet the next generation

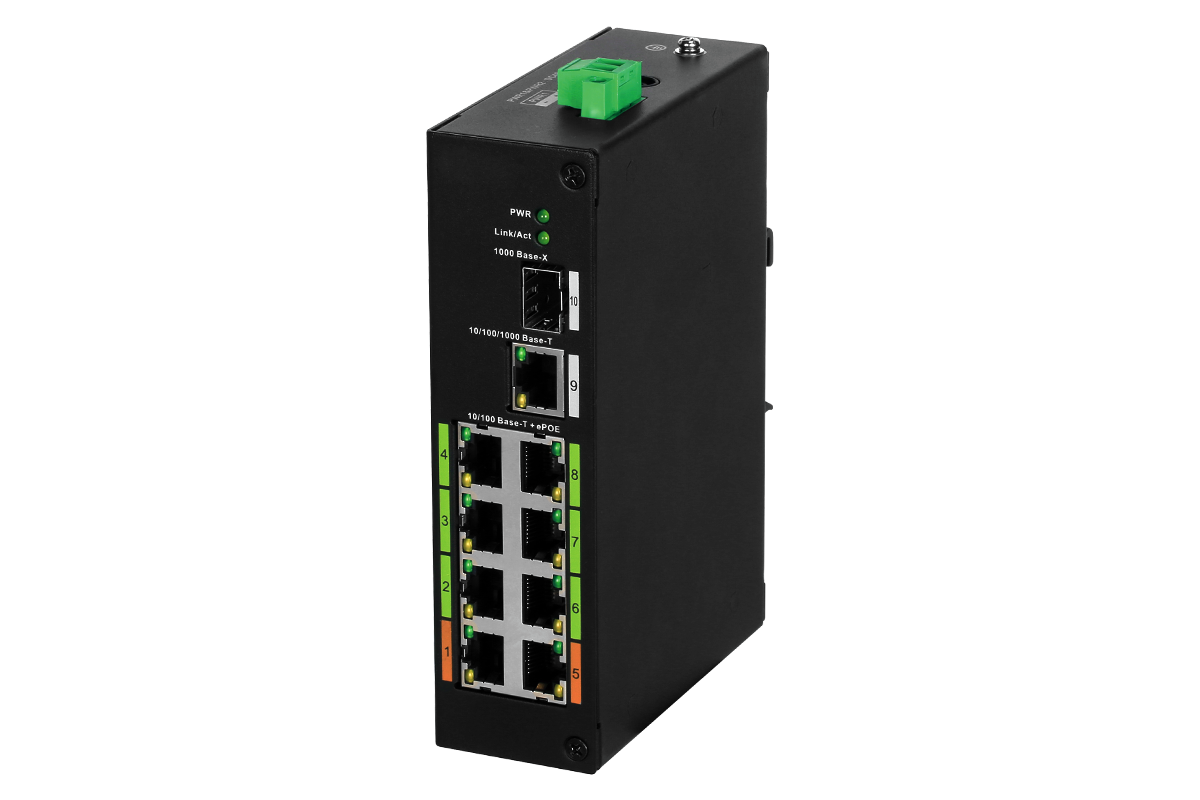

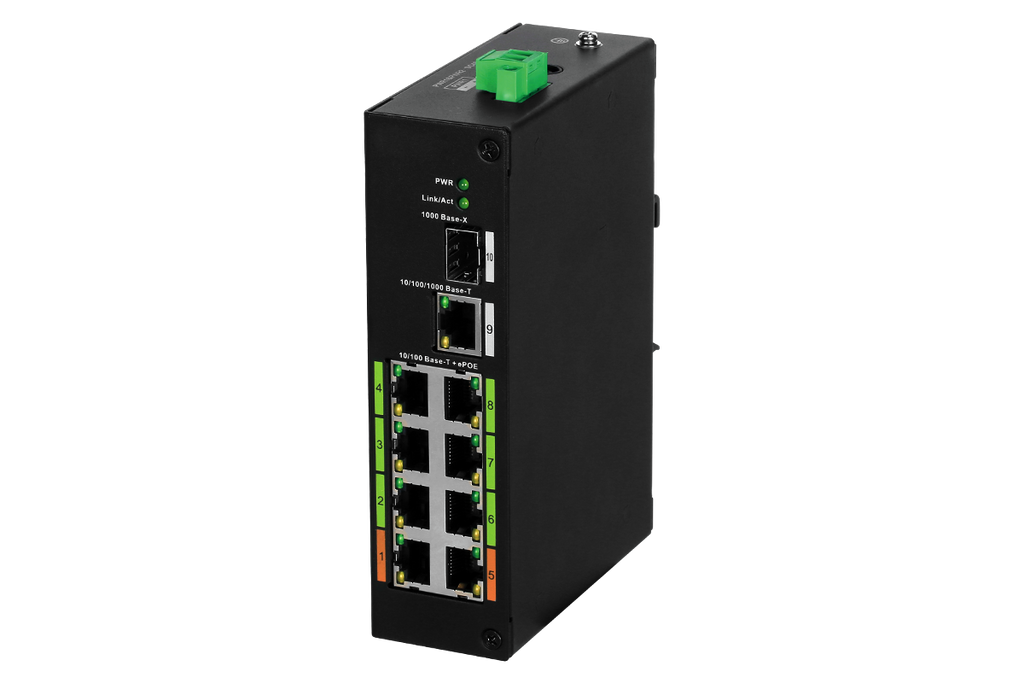

Expand the reach and simplify the installation of your NVR security camera system with this 8-Port ePoE switch. This switch can provide PoE (Power-over-Ethernet) transmission 800 meters at the speed of 10Mbps or 300 meters at the speed of 100Mbps.
Product Specifications
- Supports long distance PoE transmission up to 800m with ePoE technology
- Layer-two ePoE switch
- MAC auto study and aging, MAC address list capacity is 8K
- Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
- Supports IEEE802.3af, IEEE802.3at, Hi-PoE standard
- Industrial wide temperature design
- Port indicator light is to display the status of current transmission mode for the port, which includes IEEE, E100 and E10
| Ethernet Port | 1*1000 Base-X 1*10/100/1000 Base-T 8*10/100 Base-T(PoE power supply) |
|---|---|
| PoE Power Consumption | Port1,5≤60W, Port2,3,4,6,7,8≤30W, Total≤120W |
| PoE Protocol | IEEE802.3af, IEEE802.3at, Hi-PoE |
| Switching Capacity | 8.8Gbps |
| Packet Forwarding Rate | 4.17Mpps |
| Packet Buffer Memory | 2.75Mb |
| MAC Table Size | 8K |
| Application Humidity | 10%~90% |
| Power | DC48~57V power adapter |
| Lightning Protection | Common Mode 4KV Differential Mode 2KV |
|---|---|
| Working Temperature | -30°C~65°C |
| Weight | 0.59kg |
| Dimensions (H×D×W) | 5.9 × 3.9 × 1.6" 150 × 100 × 42mm |
| Working Mode | LED Indicator |
| IEEE mode | Normally on |
| E100 | On for 3 seconds, off for 1 second |
| E10 | On for 1 second, off for 1 second |
What's Included

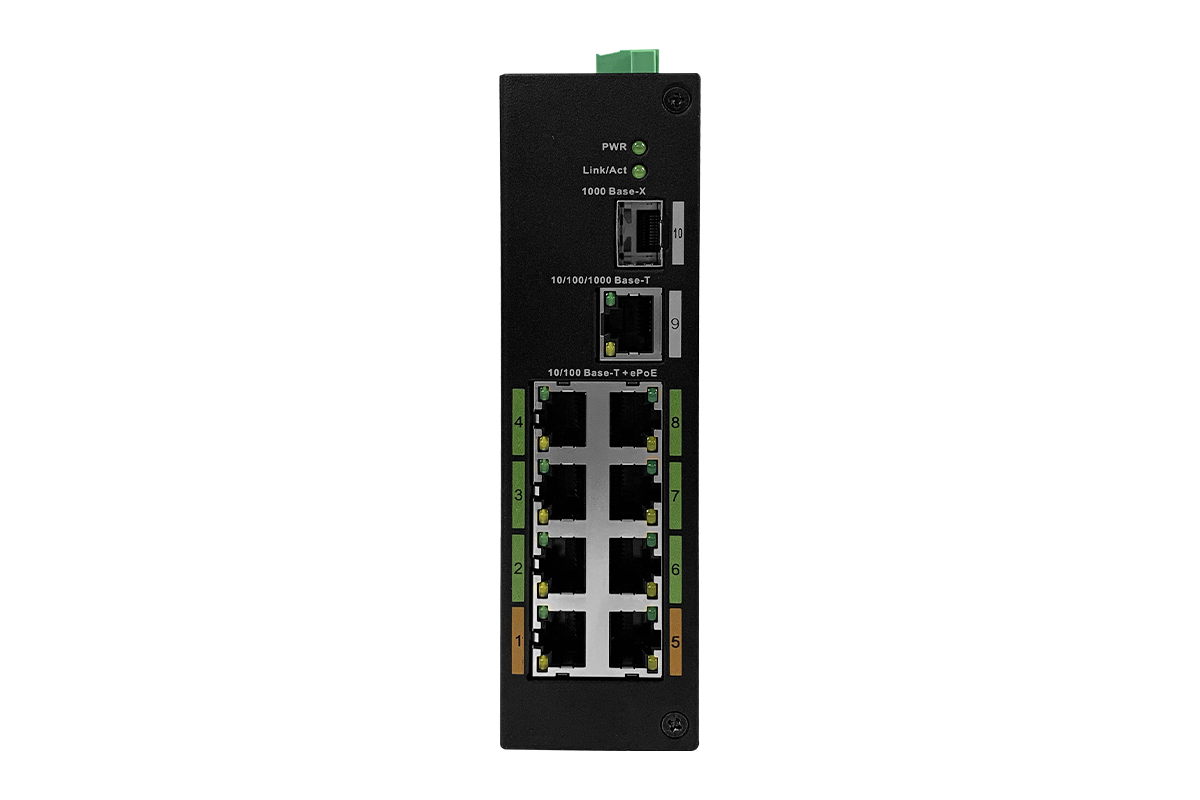

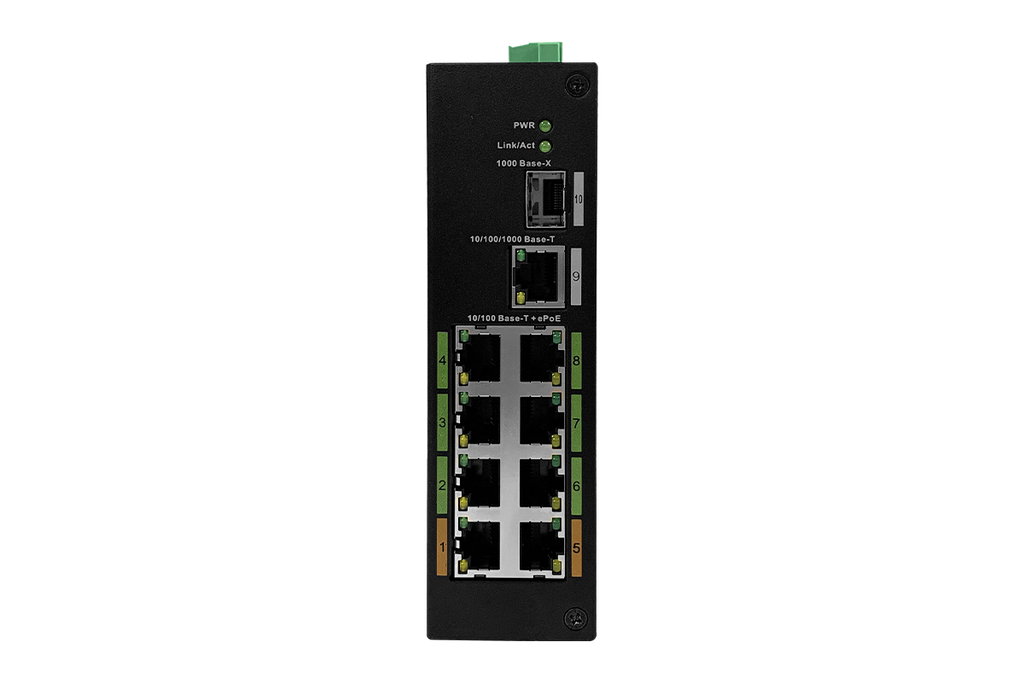

- 10/100 Base-T + ePOE
- 100/1000 Base-X
- 10/100/1000 Base-T
- Fiber Port Status Indicator
- Power Status Indicator
- PWR1
- PWR2
- Ground Wire Terminal
Package Contents:
AEX8 Switch × 1

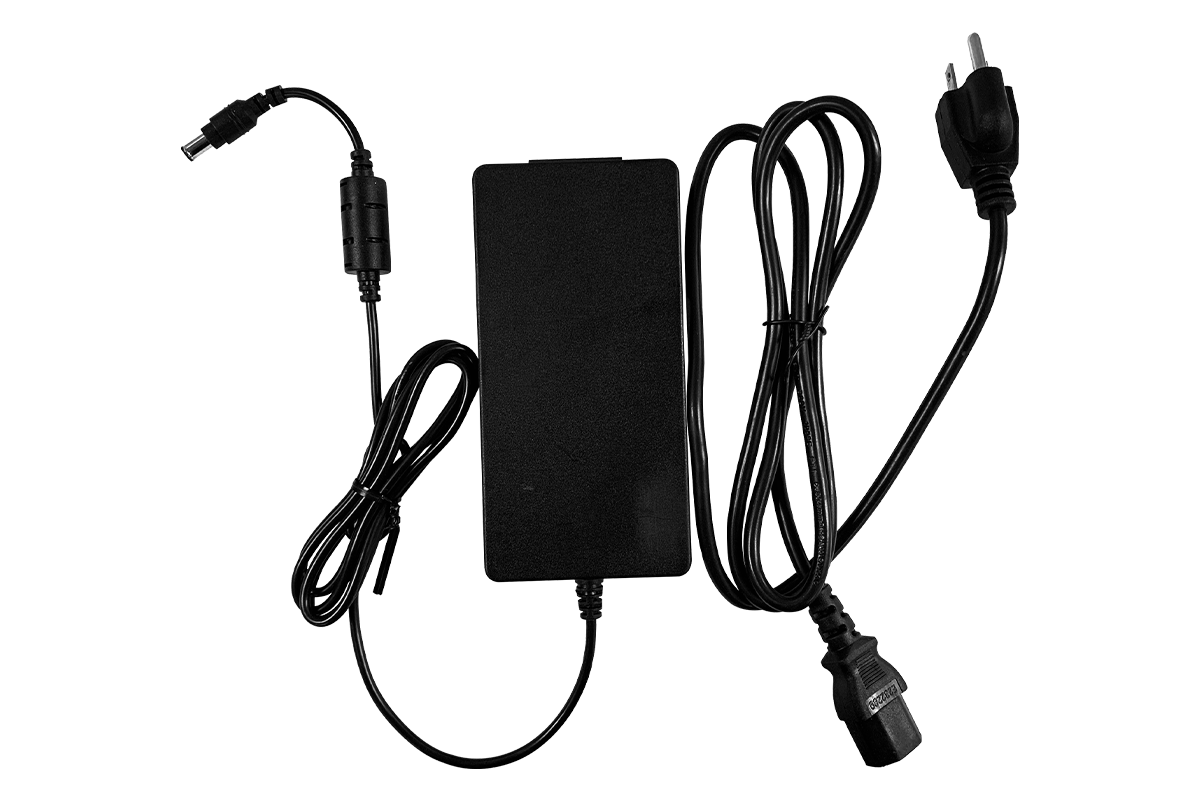

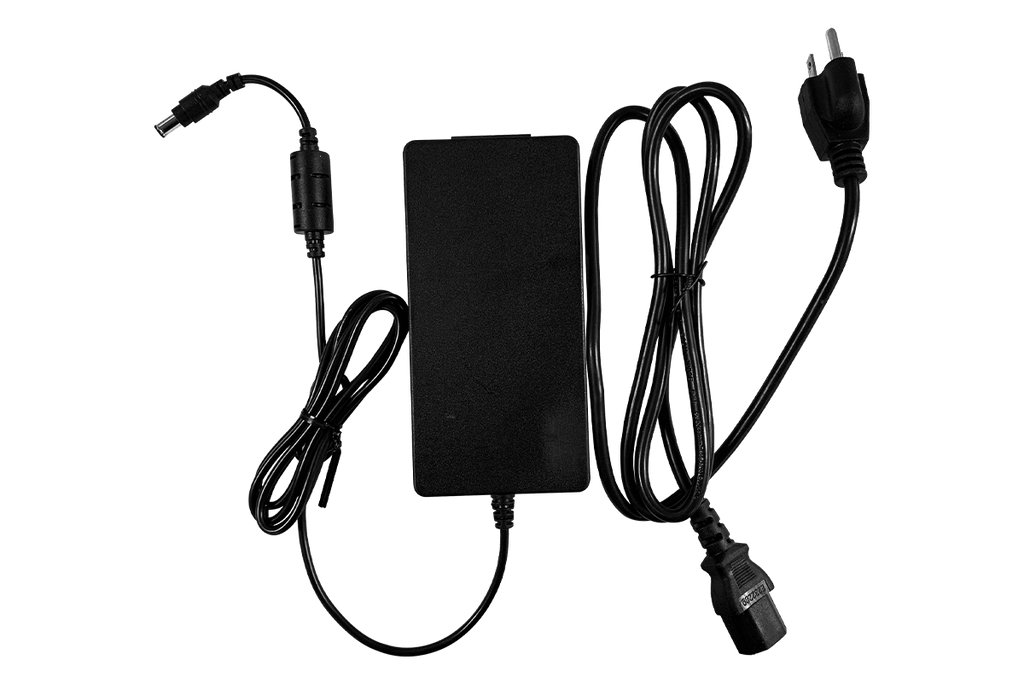

Power Adapter and Cable × 1
Product Compatibility
Product Support
AEX8 - 8-Port ePoE Switch
