Lorex Connect TF 4K 16-Channel DVR - 1TB
Prix promotionnel
$342.99 CAD
Prix régulier
$489.99 CAD
Passer aux informations sur le produit
T Series|
RD701A-61B-AB1

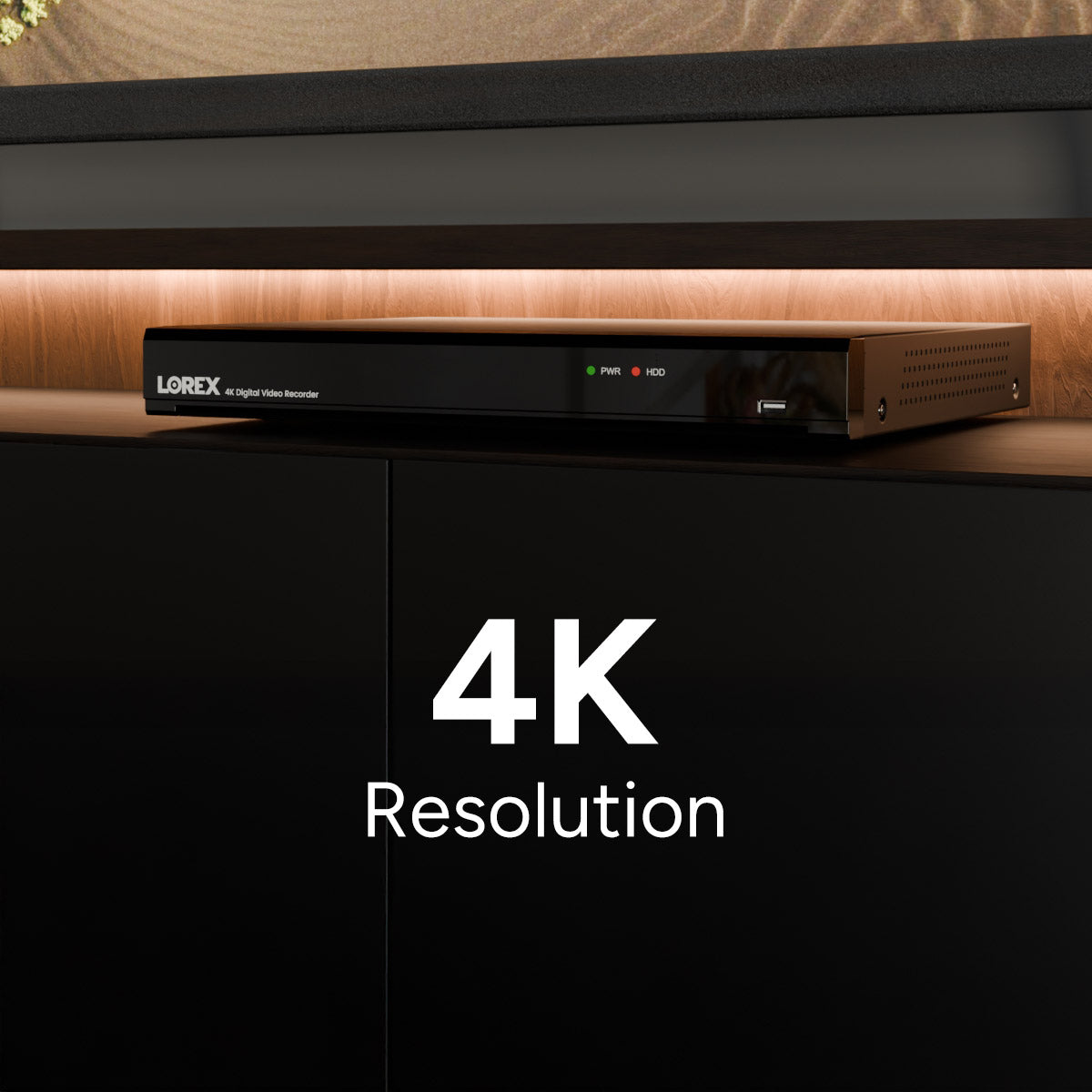

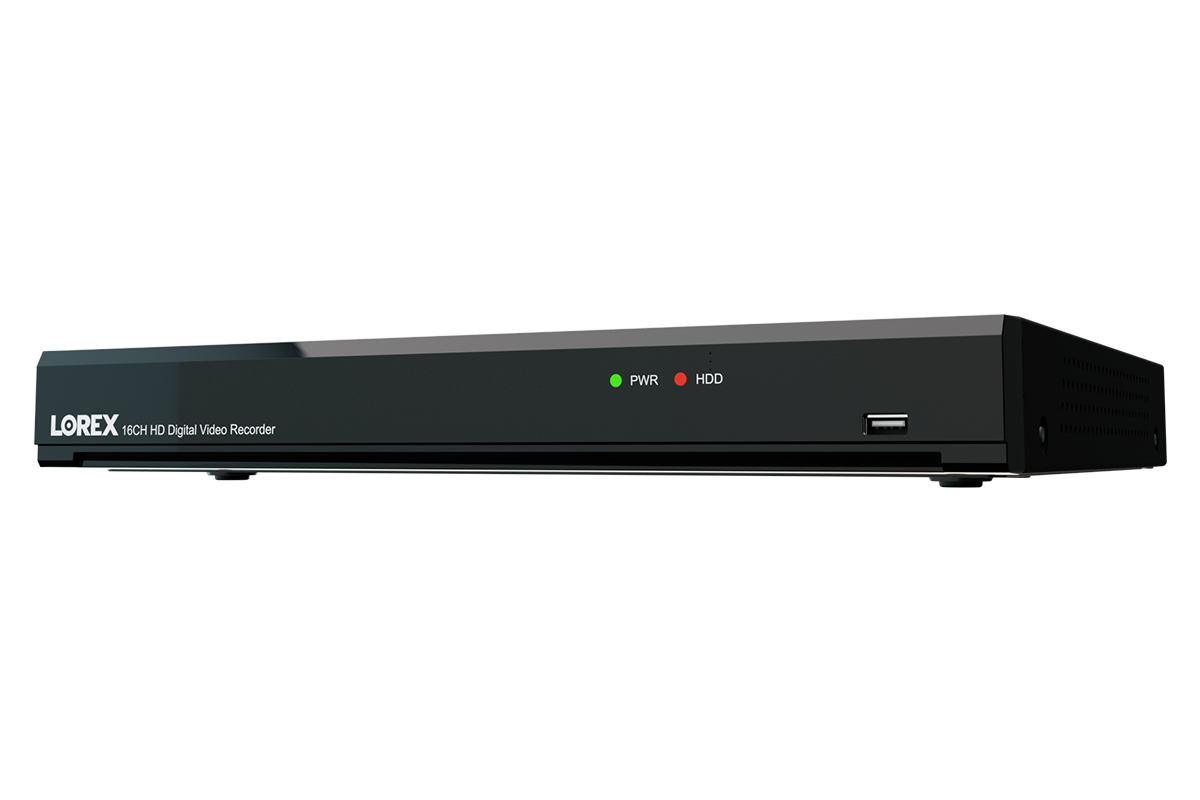

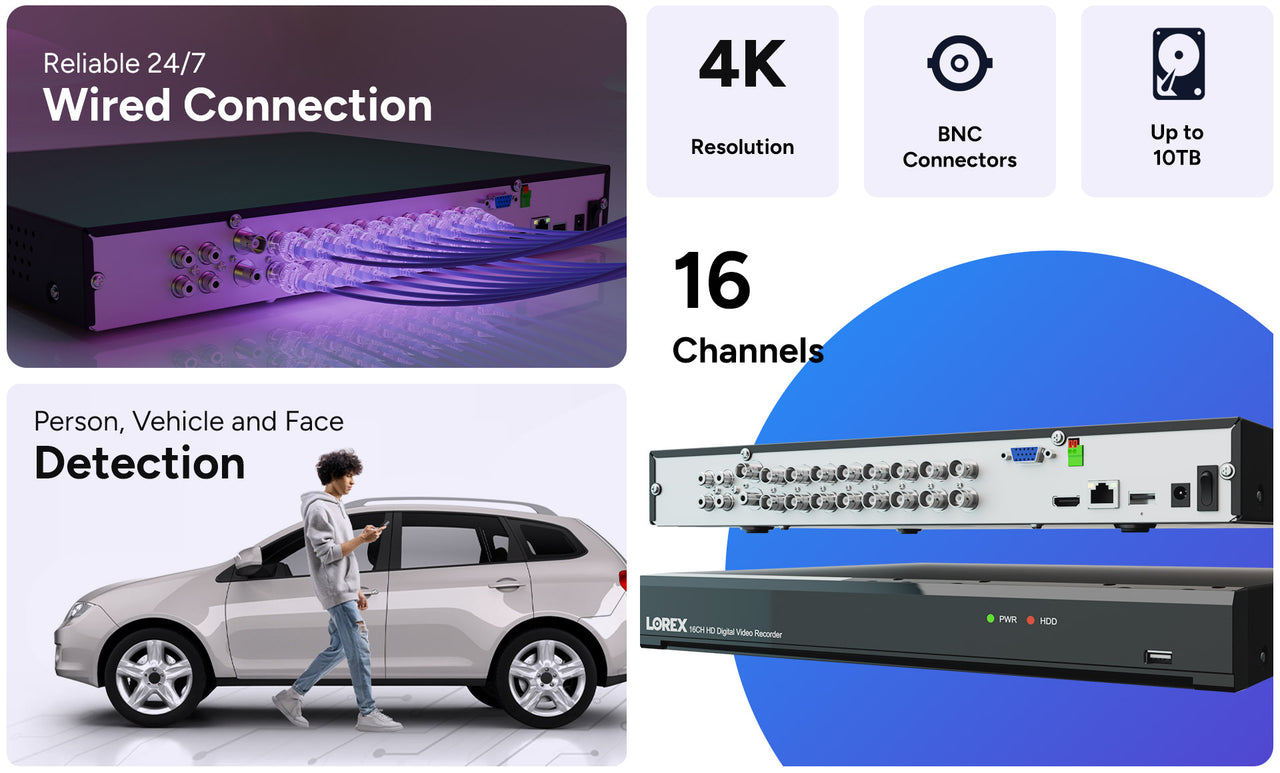

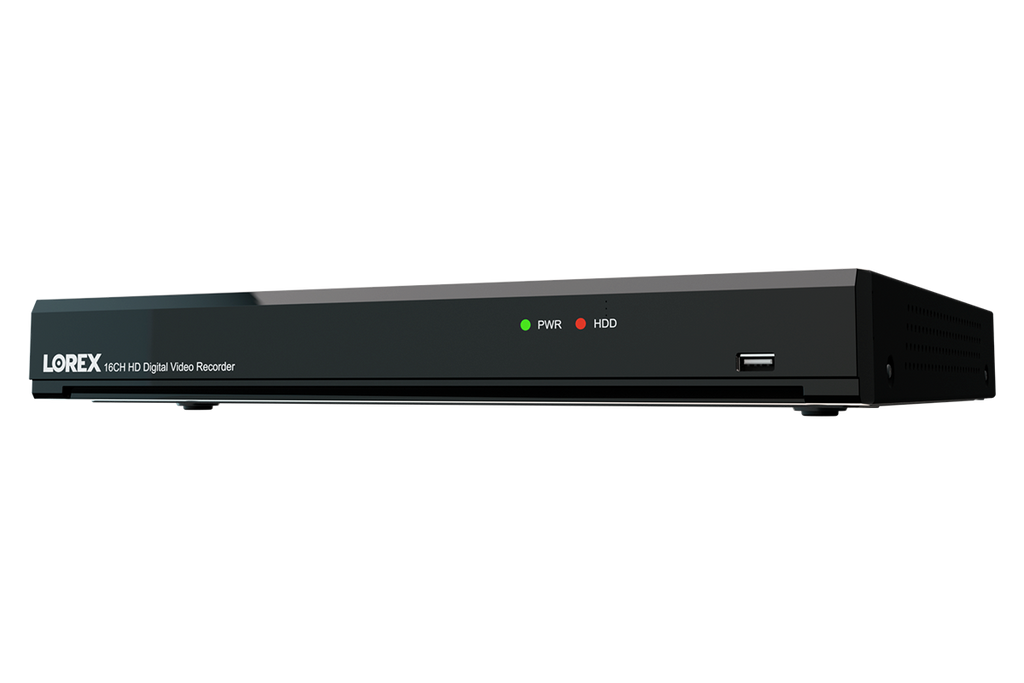

Lorex Connect TF 4K 16-Channel DVR - 1TB

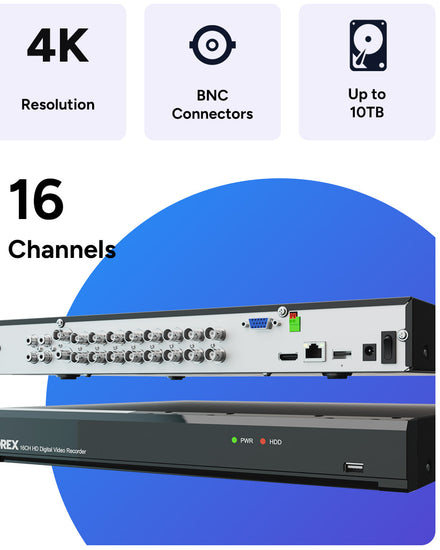

Key Features:
- 4K Ultra HD Resolution

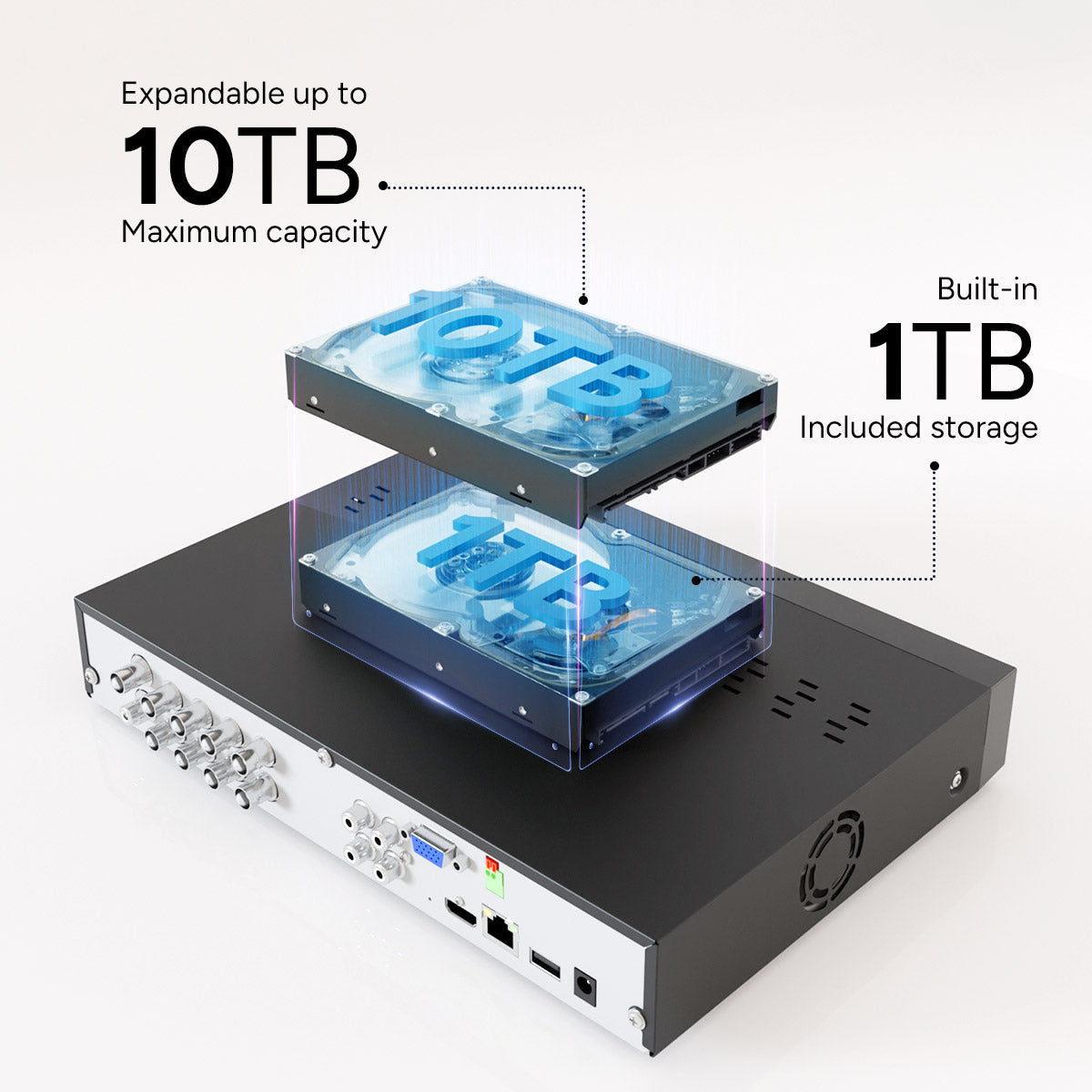

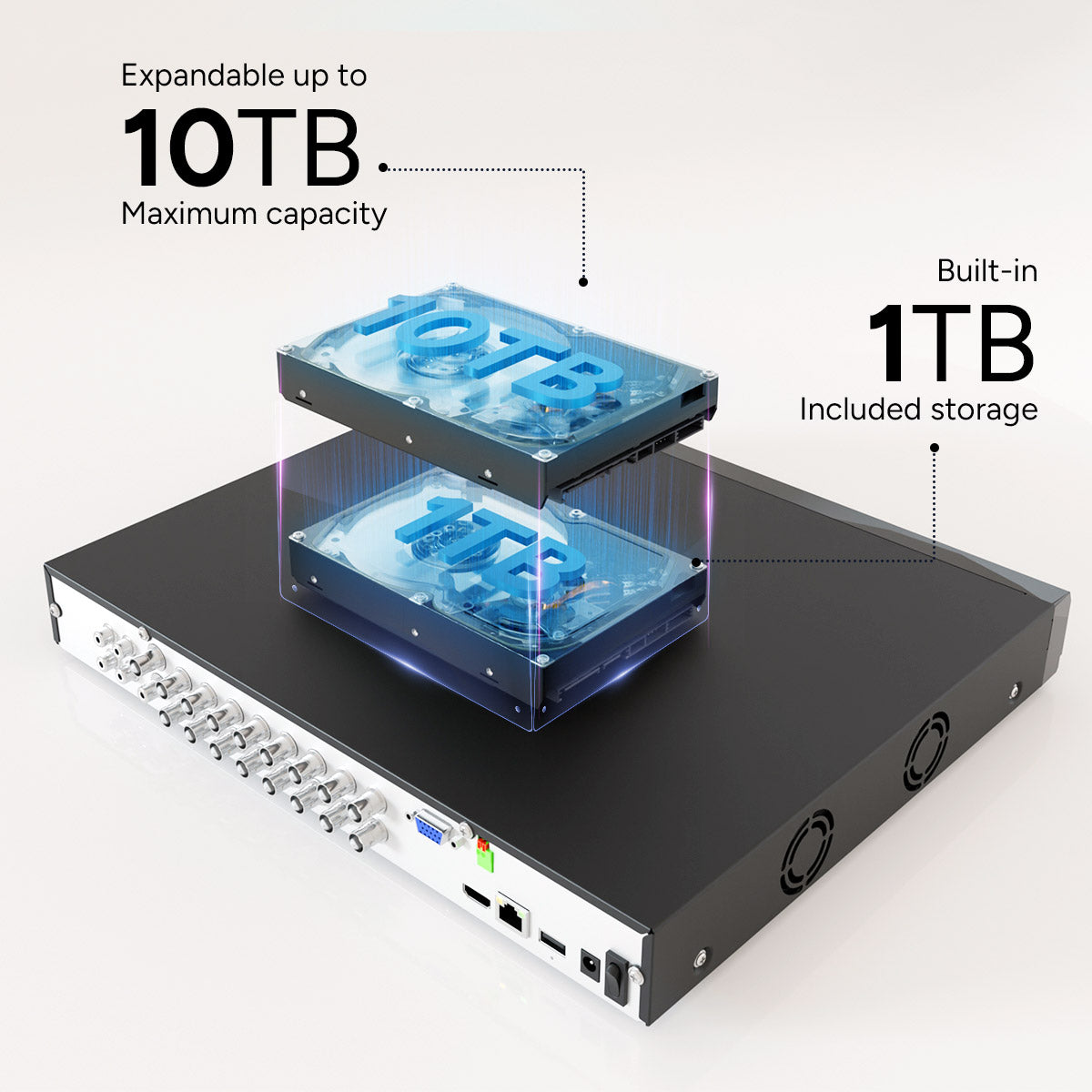

- Built-in 1TB Storage. Expandable up to 1 × 10TB
- Connect up to 16 cameras
- Works with the Lorex Connect mobile app
Become a Partner and Log in to access volume pricing, build your system, and place orders.
Become a Partner and Log in to access volume pricing, build your system, and place orders.
Add-Ons
Quick Order
Become a Partner and Log in to access volume pricing, build your system, and place orders.
Overview

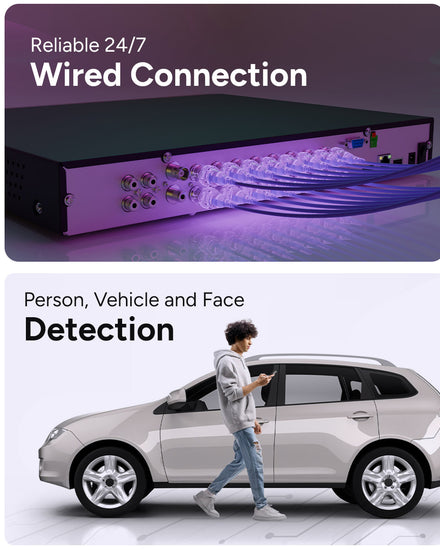

Protect your property with this 4K DVR featuring AI detection for people and vehicles, Smart Search to quickly locate events, and expandable HDD storage (up to 10TB) for long-term peace of mind.
Complete Your System
Pair with other T Series products for smarter detection, unified control, and effortless setup.

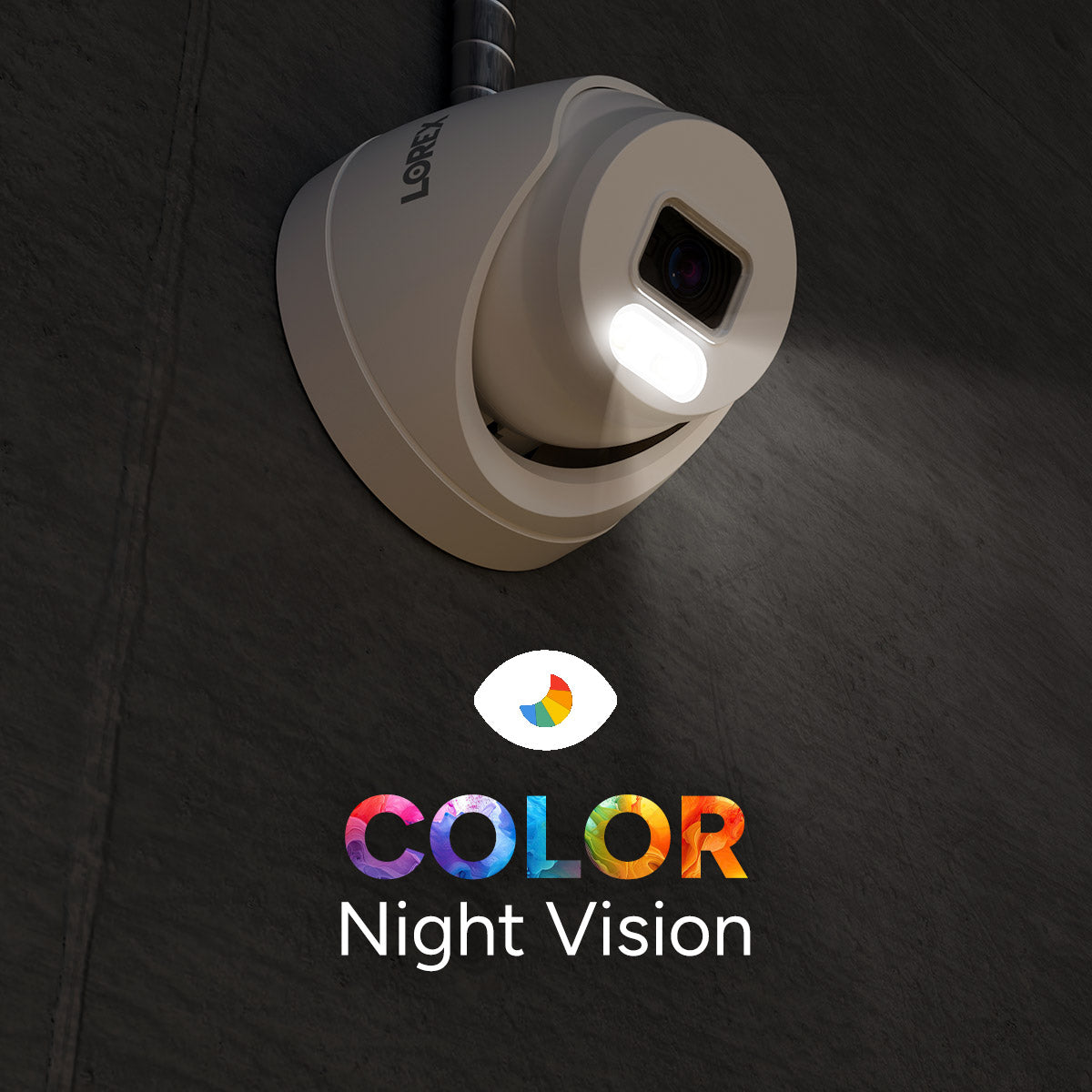

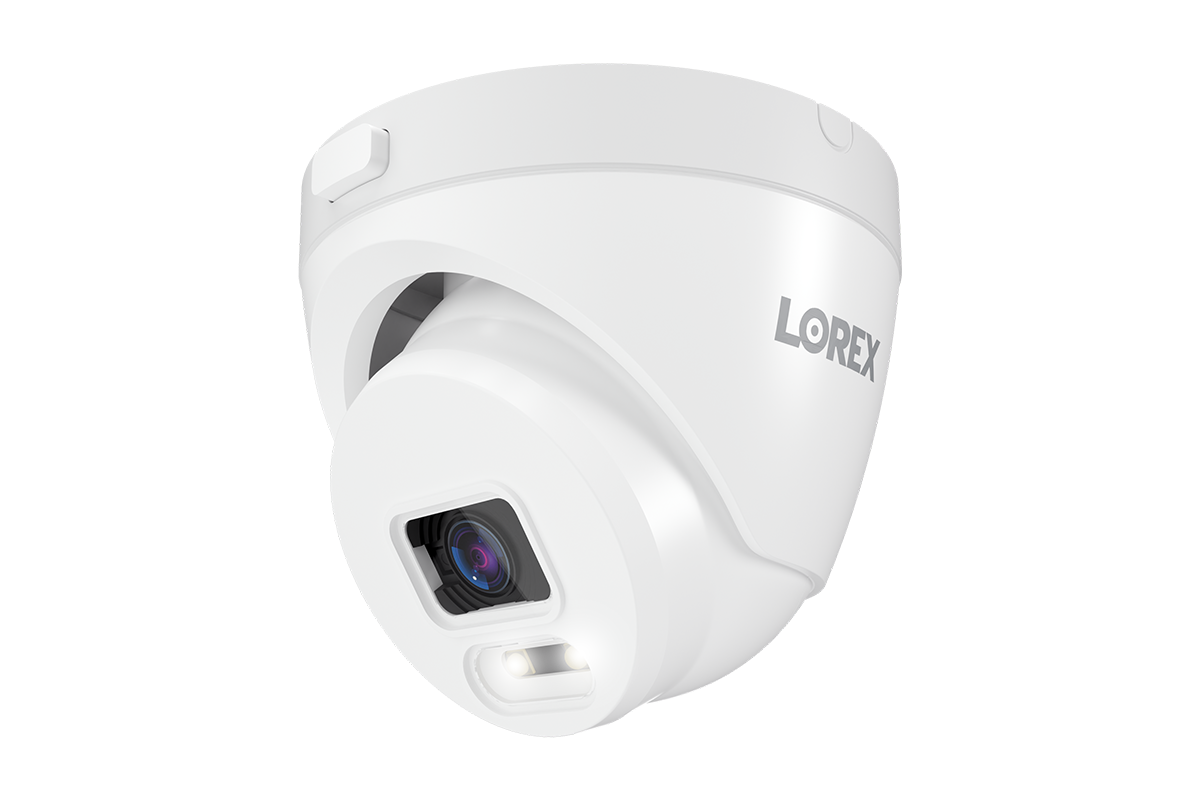

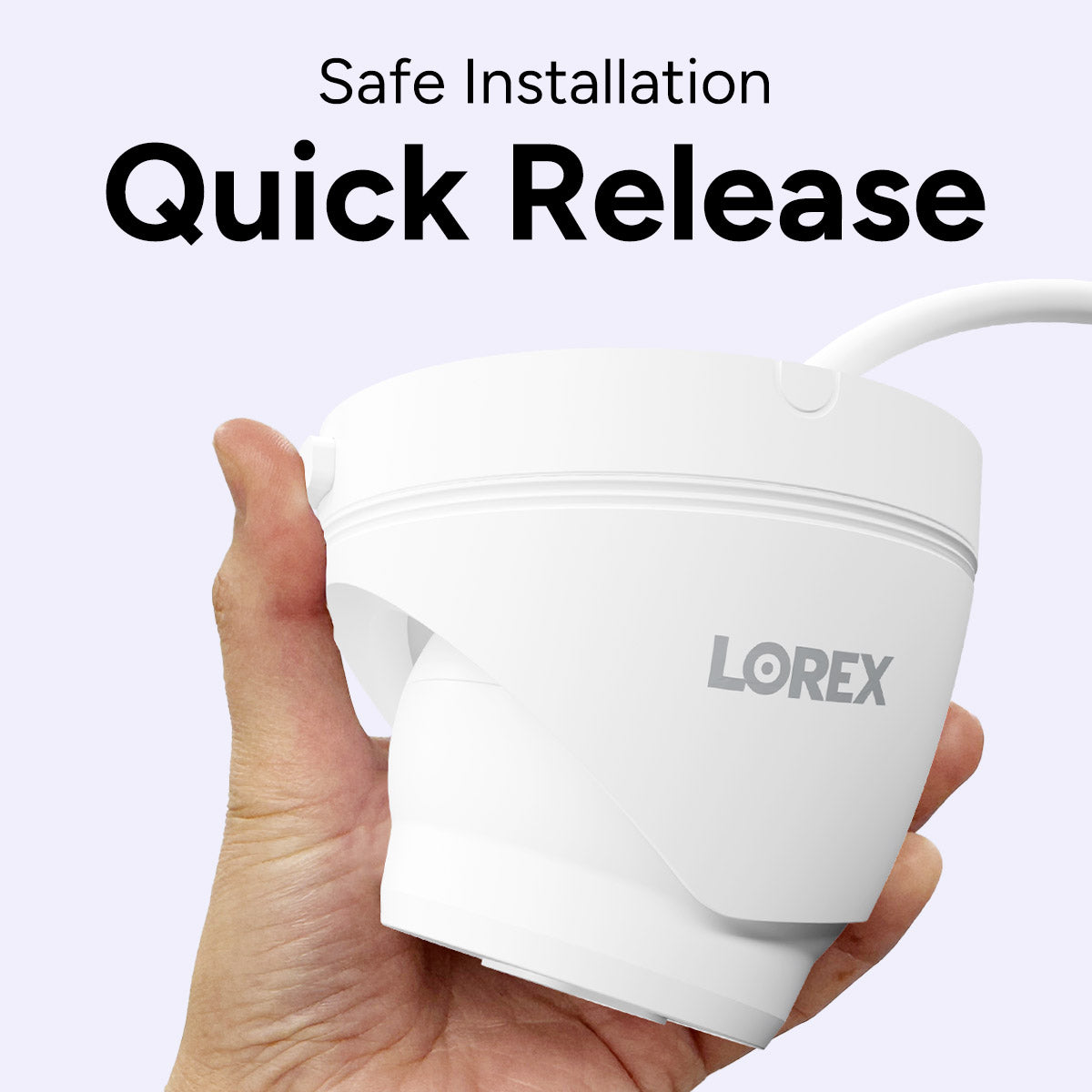

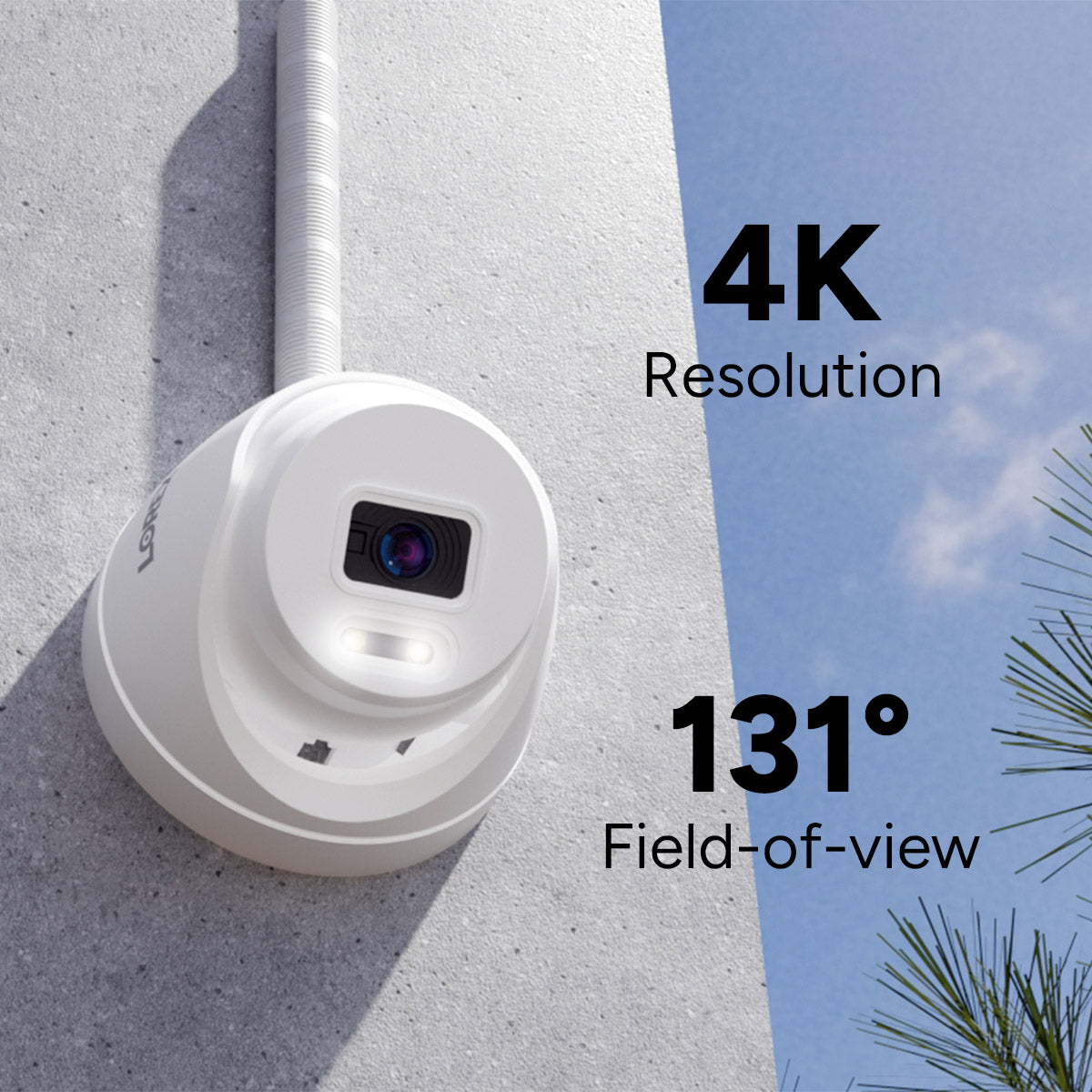

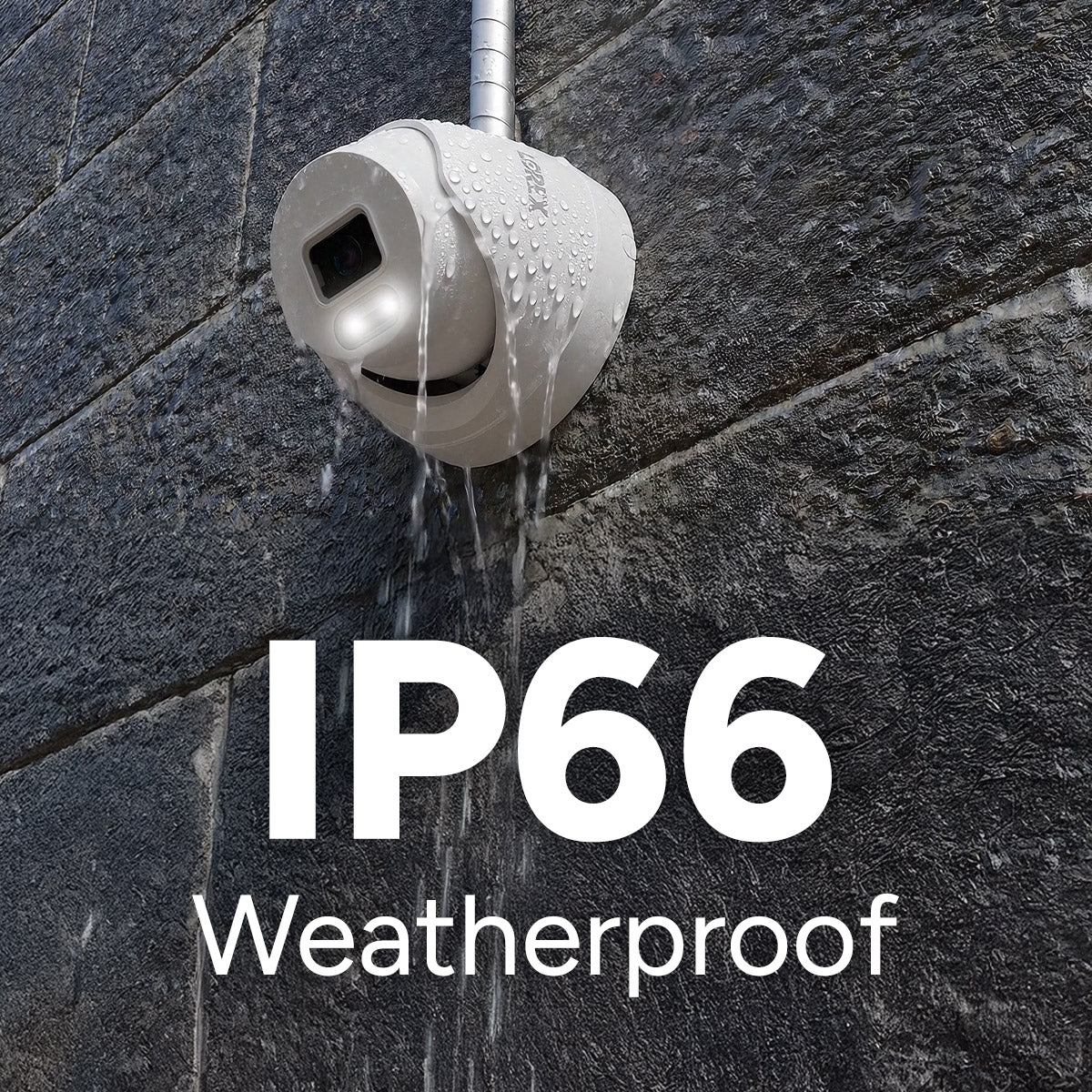

Lorex Connect T5 4K Analog Turret Camera
Lorex Connect T5 4K Analog Turret Camera
Become a Partner and Log in to access volume pricing, build your system, and place orders.
Retrait actuellement non disponible
Liste de compatibilité des produits
Ce qui est inclus
4K 16-Channel DVR
Network Cable
HDMI Cable
USB Mouse
Power Adapter
Spécifications du produit
4K 16-Channel Digital Video Recorder
- Channels
- 16 Channels
- Max Resolution
- 4K Ultra HD (3840 × 2160)
- HDD Bay
- 1 Bay
- Max HDD Capacity
- Up to 10 TB (SATA)

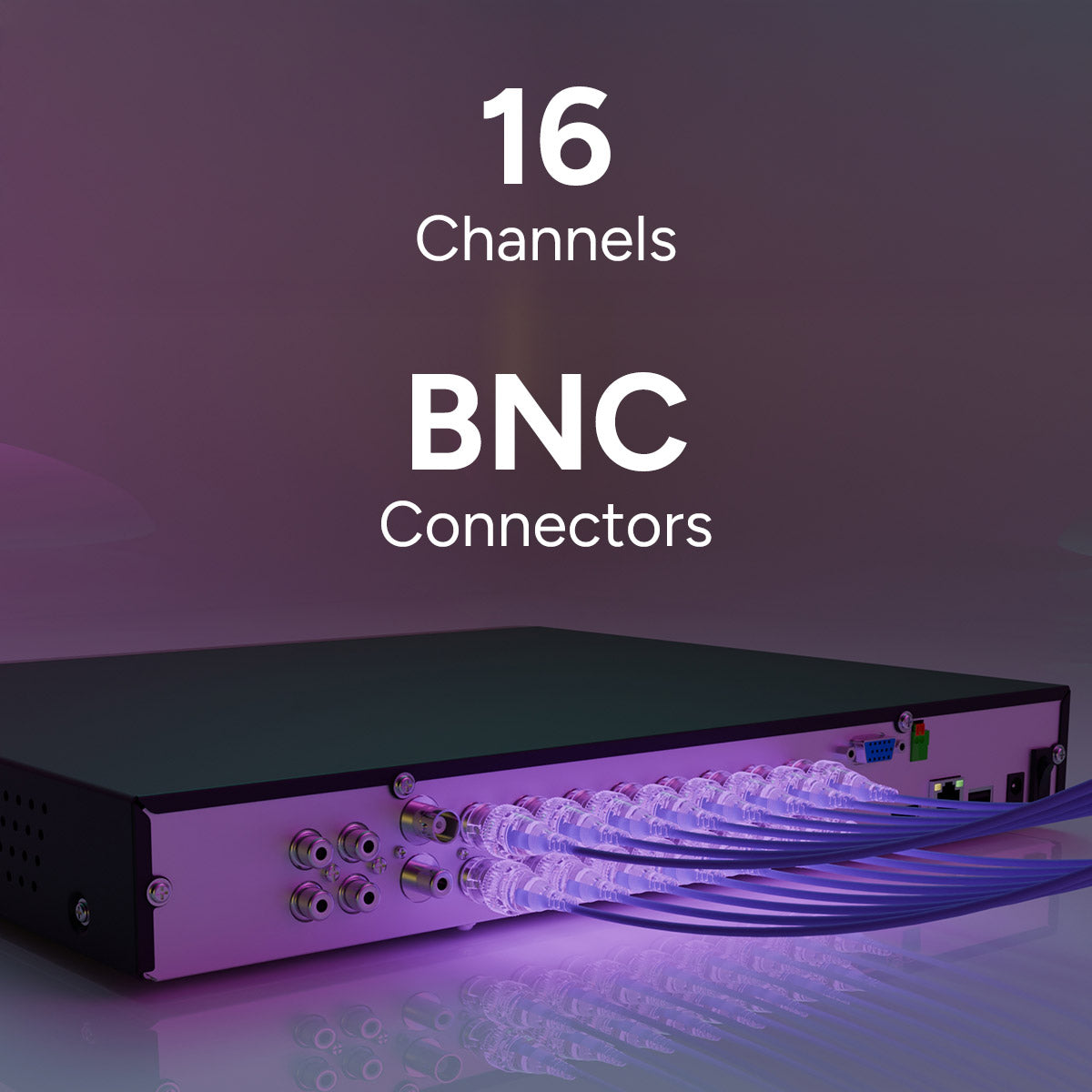

- Video Inputs
- 16 × Analog (BNC)
- Outputs
- 1 × HDMI, 1 × VGA
General
2 specs
- Video Transmission Technology
- HD Analog
- Channels
- 16 Channels
Inputs & Outputs
4 specs
- Video Inputs
- 16 × Analog (BNC)
- Video Outputs
- 1 × HDMI, 1 × VGA
- Audio Input
- 1 × RCA
- Audio Output
- 1 × RCA
Display
5 specs
- Maximum Display Resolution
- Up to 4K Ultra HD (3840 × 2160)
- HDMI Output Resolutions
- 3840 × 2160
- 2560 × 1440
- 1920 × 1080
- 1440 × 900
- 1280 × 1024
- 1280 × 720
- 1024 × 768
- VGA Output Resolutions
- 1920 × 1080
- 1440 × 900
- 1280 × 1024
- 1280 × 720
- 1024 × 768
- Live Display Modes
- 1, 4, 8, 16 view split
- System Navigation
- USB Mouse
Recording
4 specs
- Recording Resolutions
- 4K (8MP)
- 5MP
- 4MP
- 1080p (2MP)
- Recording Frame Rate
- 4K (8MP) @ 160fps
- 5MP @ 240fps
- 4 MP @ 320fps
- 1080p (2 MP) @ 480fps
- Video Compression
- H.264, H.265
- Recording Modes
- Continuous, Motion Detection, AI Motion Detection (up to 8 channels)
Playback
3 specs
- Simultaneous Playback
- Up to 8 Channels (Synchronized)
- Playback Speed Options
- Fast Forward / Rewind: 2×, 4×, 8×, 16×
- Slow Motion: 1/2×, 1/4×, 1/8×, 1/16×
- Search Options
- By Date/Time Search, Motion Events, Smart Search, AI: Face Detection, Person & Vehicle, Perimeter Intrusion, Line Crossing, Face Detection, Repeat Visitors, Face Attendance
Storage & Backup
3 specs
- HDD Bay
- 1 Bay
- Maximum HDD Capacity
- Up to 10 TB (SATA)
- Backup Media
- USB Flash Drive or External USB HDD
AI Detection & Features
6 specs
- Adjustable Motion Detection Sensitivity Levels
- 1-8
- AI Motion Detection
- Supported: Person & Vehicle, Perimeter Intrusion, Line Crossing, Face Detection (1 AI detection type per channel, max 8 AI-enabled channels)
- Line Crossing Detection
- Supported
- Perimeter Intrusion Detection
- Supported
- Face Detection
- Supported
- Face Recognition
- Supported
Connectivity
8 specs
- Mobile Viewing
- Lorex Connect App (iOS and Android)
- Event Notifications
- Video Loss
- Beep
- Push Notifications
- Email Notifications
- Text and Snapshot Alerts
- Network Interface
- 10/100 Base-TX (RJ45)
- USB Ports
- Front: 1 × USB 2.0
- Back: 1 × USB 2.0
- Firmware Upgrade
- Network, USB
- Supported Languages
- English, French, Spanish
- DDNS
- Optional
Security
1 spec
- Password Reset
- Supported
Power
2 specs
- Power Supply
- DC 12 V / 5 A
- Power Consumption (Excluding HDD)
- 20 W
Physical & Environmental
4 specs
- Product Weight
- 1.76 lbs (0.80 kg)
- Product Dimensions (W × D × H)
- 14.88 × 12.48 × 2.05 in (378 × 317 × 52 mm)
- Operating Temperature
- 14°F to 122°F (-10°C to 50°C)
- Humidity
- <90% RH (Non-condensing)
Packaging Information
6 specs
- RD701
- SKU: RD701A-61B-AB1
- UPC: 6-95529-06444-4
- Package Type
- Brown Box
- Package Dimensions (W × D × H)
- 18.90 × 3.74 × 14.57 in (480 × 95 × 370 mm)
- Package Weight
- 2.64 lbs (1.197 kg)
- Package Cube
- 0.6 ft³ (0.017 m³)
- Package Contents
- 4K 16-Channel Wired DVR
- Network Cable
- HDMI Cable
- USB Mouse
- Power Adapter
Model Information
1 spec
- SKU
- RD701A-61B-AB1
No specs match your search.
Notes & disclaimers
- 4K (8MP) cameras are required to take advantage of 4K recording.
- Requires a high-speed internet connection and a router (not included) for remote access. A minimum upload speed of 6Mbps is required for the best video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit: www.lorex.com/support.
- Compatible with select Lorex cameras only. For a list of compatible cameras, please visit www.lorex.com/compatibility.
- Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available.
- The accuracy of AI Detection, including Face Detection, Person, Vehicle, Perimeter Intrusion, and Line Crossing may be affected by various factors, including the object’s distance from the camera, object size, and the camera’s height and angle. Detection accuracy may also be reduced in low-light conditions or when using night vision.
- AI Detection (Face Detection, Person & Vehicle, Perimeter Intrusion, Line Crossing) is limited to 1 AI detection type per channel, with a maximum of 8 AI-enabled channels.
- Both firmware and software must be updated to latest version to ensure remote connectivity in all areas or networks. For compatibility, features, instructions visit: www.lorex.com/smarthome.
- HDMI output supports 4K UHD for live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the DVR, as well as TV/ monitor resolution.
